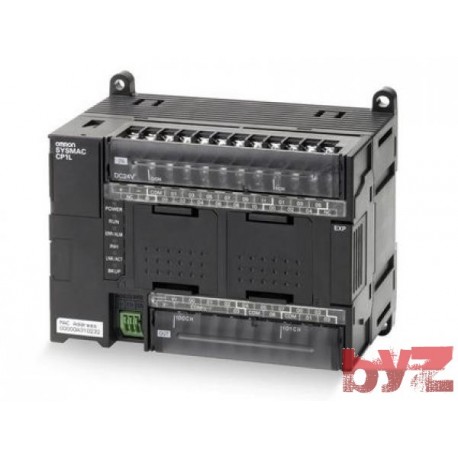

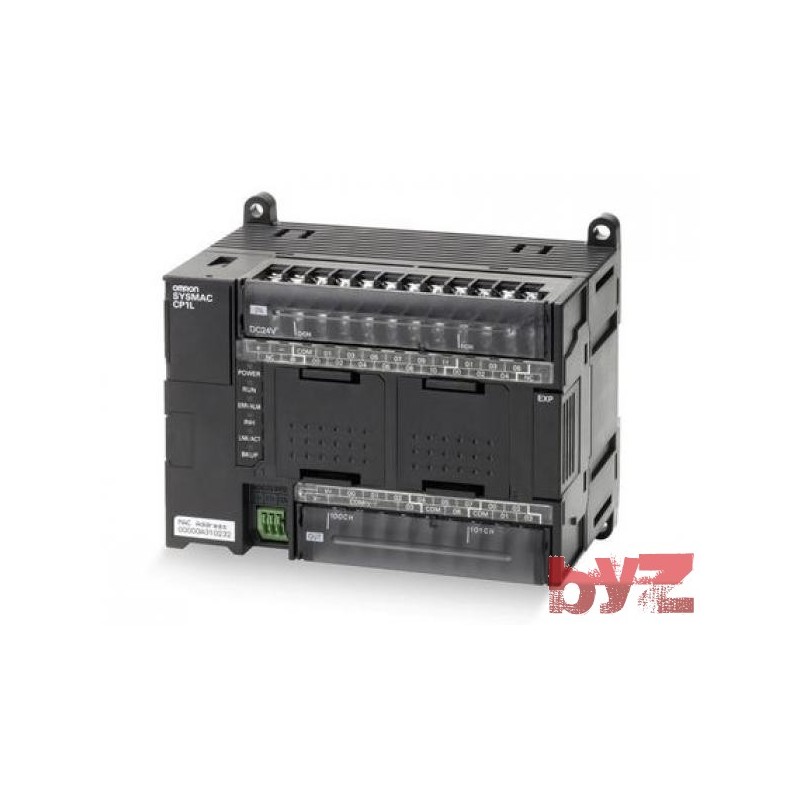

CP1L-M30DR-D - Omron CPU
CP1L-M30DR-D
Yeni Ürün
Bu ürün stokta bulunmamaktadır. Teslim süresi 2-3 haftadır.
- Arkadaşına Gönder
- Favorilerim listeden bu ürünü çıkarın.
- Ürünü favorilerime ekle.
- Yazdır
Daha Fazla Bilgi
| Datasheets | CP Series |
| Standard Package | 1 |
| Category | Industrial Controls, Meters |
| Family | Controllers - Programmable Logic (PLC) |
| Series | CP1L |
| Number of Inputs and Type | 18 - Digital |
| Number of Outputs and Type | 12 - Relay |
| Voltage - Supply | 24VDC |
| Display Type | No Display |
| Number Of Characters Per Row | - |
| Expandable | 3 Modules Max |
| Communications | USB, Option Cards Available |
| Memory Size | 32K Words |
| Mounting Type | Chassis Mount, DIN Rail |
| Features | Battery Backup |
| Operating Temperature | 0°C ~ 55°C |
| Ingress Protection | - |
| Software | CX-One |
| Approvals | CE, cULus, Lloyd, NK |
| Weight | 1.3 lbs (589.7g) |
| Associated Product | Z840-ND - DIN RAIL 35MMX7.3MM SLOTTED 1M |
| Z841-ND - DIN RAIL 35X7.3MM SLOTTED 19.7" | |
| Z887-ND - END PLATE FOR DIN TRACK RAIL | |
| Z2611-ND - DIN RAIL 35X16MM SLOTTED ALUM 1M | |
| CJ1W-BAT01-ND - BATTERY FOR CJ1M ONLY | |
| CP1W-16ER-ND - EXPANSION I/O UNIT | |
| CP1W-16ET-ND - EXPANSION I/O UNIT | |
| CP1W-16ET1-ND - EXPANSION I/O UNIT | |
| CP1W-20EDR1-ND - EXPANSION 12 IN 8 OUT RELAY | |
| CP1W-20EDT-ND - EXPANSION 12 IN 8 OUT NPN | |
| CP1W-32ER-ND - EXPANSION I/O UNIT | |
| CP1W-32ET-ND - EXPANSION I/O UNIT | |
| CP1W-32ET1-ND - EXPANSION I/O UNIT | |
| CP1W-40EDR-ND - EXPANSION I/O UNIT | |
| CP1W-40EDT-ND - EXPANSION I/O UNIT | |
| CP1W-40EDT1-ND - EXPANSION I/O UNIT | |
| CP1W-8ED-ND - 8 PT IN CP1 EXPANSION | |
| Z3165-ND - CONTRLR DIGITAL RELAY 8OUT | |
| CP1W-8ET-ND - 8 PT NPN CP1 EXPANSION | |
| CP1W-8ET1-ND - 8 PT PNP CP1 EXPANSION | |
| Z3172-ND - CONTROL ANALOG 4 INPUTS | |
| Z3169-ND - CONNECTOR (UNIT, EXPANSION) | |
| CP1W-CIF11-ND - RS-422/485 SERIAL OPTION MOD | |
| CP1W-CIF12-ND - RS422/485 500M LONG RANGE | |
| CP1W-CIF41-ND - ETHERNET ADAPTER ENHANCED | |
| CP1W-CN811-ND - 80CM EXT CBL FOR CPM1A EXPAND | |
| CP1W-DA041-ND - 4 PT D/A CP1 EXPANSION | |
| CP1W-DAM01-ND - CP1 LCB OPTION BOARD | |
| CP1W-MAD11-ND - 2 PT A/D 1 PT D/A CP1 EXP | |
| CP1W-ME05M-ND - MEMORY CASSETTE | |
| Z3170-ND - CONTROL TEMP 2 THRMOCOUPLE INPUT | |
| CP1W-TS002-ND - 4 PT J,K THERMOCOUPLE EXPANSIO | |
| Z3171-ND - CONTROL TEMP 2 THRMOCOUPLE INPUT | |
| CP1W-TS102-ND - 4 PT EXPANSION | |
| Z3181-ND - CABLE USB-SERIAL CONVERSION | |
| W4S1-03B-ND - SWITCH IND HUB 3PORT ETHERNETIP | |
| W4S1-05B-ND - SWITCH IND HUB 5PORT ETHERNETIP | |
| XW2Z-200S-CV-ND - CABLE PT/ASC02 TO 9 PIN EMS | |
| XW2Z-200S-V-ND - 2M CABLE FOR SCREW TERMINAL | |
| XW2Z-500S-V-ND - CABLE CQM1/CS1 TO 9 PIN 5M | |
| CP1W-20EDT1-ND - BOARD I/O EXPANSION 24VDC | |
| CP1W-SRT21-ND - BOARD I/O EXPANS COMPOBUS 0.029V | |
| CP1W-DA021-ND - CP1 2 PT ANALOG OUT 6000 RES | |
| CP1W-ADB21-ND - CP1L-E OPTION MOD, 2 ANALOG IN | |
| CP1W-DAB21V-ND - CP1L-E OPTION MOD, 2ANALOG OUT | |
| CP1W-MAB221-ND - CP1L-E OPTION MOD, 2AI, 2AO | |
| Other Names | CP1LM30DRD |
