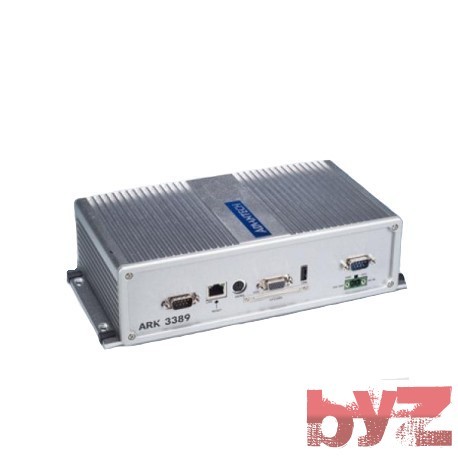

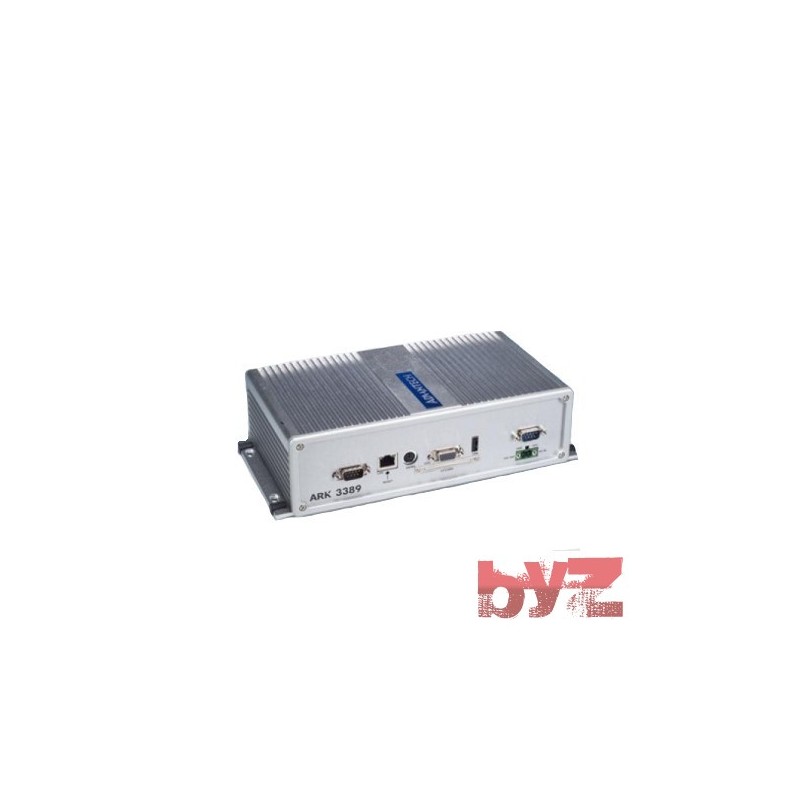

ARK-3389-1S0B1E - Endüstriyel PC

Intel uFCBGA 479-pin Ultra Low Voltage Celeron or Intel Pentium M Low Voltage Processor
ULV Celeron M 1.0 GHz (0KB L2 Cache)
LV Pentium M 1.4 GHz (1MB L2 Cache)
Intel 852GM GMCH or Intel 855GME Chipset
Intel ICH4 Chipset
400 MHz FSB
4-Mbit Flash BIOS, supports Plug & Play, APM 1.2
1 x 200-pin SODIMM socket, Supports DDR SDRAM up to 1 GB
Integrated graphics built in to Intel 852GM GMCH, or Intel 855GME GMCH, utilizing Intel Extreme Graphics 2
technology
Dynamic Video Memory Allocation up to 64 MB
CRT Interface, 36-bit LVDS interface
Intel 82551QM 10100Base-T Ethernet controller
1 x RS-232 port and 1 x RS-232422485 port
3 x USB port, USB 2.0 Compliant
255 levels timer interval, setup by software
Supports PS2 Mouse and PS2 Keyboard
Support D-Type, 8 Bits DIO
Windows XP Embedded, Windows 2000XP Windows 32bit VISTA
Supports drive bay space for 2.5 SATA HDD
Supports CompactFlash socket for type III CompactFlash disk
Aluminum housing
Din-Rail mounting, Deskwall-mounting
264.5 x 69.2 x 137.25 mm (10.41 x 2.72 x 5.4)
2 kg (4.4 lb)
Typical: 24 W, Max 36 W
12 Vdc 24 Vdc, 12 Vdc @ 3 A, 24 Vdc @ 1.5 A
With Industrial Grade CompactFlash disk: -20 60° C
With 2.5-inch hard disk 0 to 45° C
95% @ 40° C (non-condensing)
With CompactFlash disk: 5 Grms, IEC 60068-2-64, random, 5 500 Hz, 1 Oct.min, 1 hraxis.
With 2.5-inch hard disk: 1 Grms, IEC 60068-2-64, random, 5 500 Hz, 1 Oct.min,
With CompactFlash disk: 50 G, IEC 60068-2-27, half sine, 11 ms duration
With hard disk: 20 G, IEC 60068-2-27, half sine, 11 ms duration
CEFCC Class A, CCC, BSMI
UL, CCC, BSMI, CE
